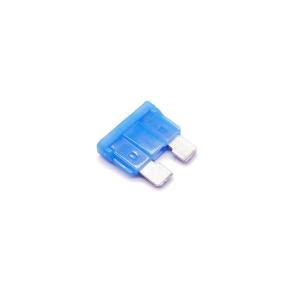

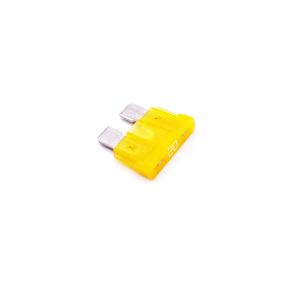

0287040.PXCN Littelfuse Automotive Fuse

Ask Lasest Price
Brand Name :	Tian Rui
Model Number :	Littelfuse 287 Series
Certification :	ROHS UL
Price :	Negotiable
Payment Terms :	D/P, T/T,Paypal, Western Union
Supply Ability :	1000000PCS/Month
Delivery Time :	5-7 Days

Add to Cart

Product Details
Company Profile

0287040.PXCN Littelfuse Automotive Fuse

0287010.PXCN 0287015.PXCN 0287020.PXCN 0287025.PXCN 0287030.PXCN 0287035.PXCN 0287040.PXCN Littelfuse Automotive Fuse

Description

ATOF Blade Fuses Rated 32V

Developed by Littelfuse for the automotive industry, the ATOF fuse has become the original equipment circuit protection standard for foreign and domestic automobiles and trucks. Readily identifiable and easily replaced, this fuse can be specified for a variety of low voltage electronic

applications.

Specification

Specification	ATOF (Tin Plated)	ATO Ag (Silver Plated)
Interrupting Rating:	1000A @ 32 VDC	1000A @ 32 VDC
Voltage Rating:	32 VDC	32 VDC
Component Level Temperature Range:	-40°C to +105°C	-40°C to +125°C
System Level Temperature Range:	-40°C to +85*C	-40°C to +105°C
105°C and 85°C are typical system level temperature requirements.
Terminals:	Sn plated zinc alloy	Ag plated zinc alloy
Housing Material:	PA66	PA66
Complies with:	SAE J1284,ISO 8820-3	SAE J1284,ISO 8820-3
UL Listed:	File AU1410	File AU1410
CSA Certified:	File No.29862	File No. 29862

Ordering Information

Part Number	Package Size
ATOFO (Tin Plated)
02870x0x. PXCN	2000
0287xox.U	500
0287xox.H	100
0287x00x.L	50
ATOFO Ag (Silver Plated)
02870ox.PXS	2000

Time-Current Characteristics

% of Rating	Current Rating	Opening Time Min / Max (s)
100	35A & 40A	360,000s/-
110	1A-30A	360.000s/-
135	1A&2A	350 ms / 600s
	3A-40A	0.750s / 600s
160	1A-40A	250 ms/ 50s
200	1A&2A	100 ms/5.0s
	3A-40A	0.150s/5.0s
350	1A&2A	20ms/500ms
	3A-40A	80ms/500ms
600	1A-30A	-/ 100 ms
	35A & 40A	-/ 150 ms

Part Number	Current Rating (A)	Housing Material Color	Typ. Voltage Drop (mV)	Cold Resistance (mΩ)	I2t(A2s)
0287001._	1	0000	176	123	0.4
0287002._	2	0000	141	53.5	1.4
0287003._	3	0000	137	31.1	7.4
0287004._	4	0000	136	22.8	14
0287005._	5	0000	128	17.85	26
028707.5_	7.5	0000	116	10.91	60
0287010._	10	0000	109	7.70	115
0287015._	15	0000	102	4.80	340
0287020._	20	0000	98	3.38	520
0287025._	25	0000	92	2.52	1080
0287030._	30	0000	84	1.97	1510
0287035._	35	0000	87	1.61	2280
0287040._	40	0000	96	1.44	3310

How to Use The Middle Blade Fuse

Step 1

Locate your car's fuse panel and the blown fuse. Fuse panels can usually be found under the steering wheel.Most cars have
one or two fuse boxes under the hood, next to the engine or battery. There may also be a fuse box inside the car, so keep looking
if the fuse you're looking for isn't here, or if all the fuses here are fine.Newer cars often have a fuse box underneath the dash
in an easily accessible location. Check the ceiling of the glove box for a hinge that swings downward. You may need a flat-head
screwdriver to open the lid.Older cars often have their fuses in an open box to the left of the brake pedal or the foot-operated
parking brake. It's difficult to examine the fuses closely in some models, so bring a flashlight and/or hand mirror.Less commonly,
the fuse box is located in the trunk or under the rear seat.

Step 2

Remove the broken fuse. You can use a variety of tools (or skip the tools and use your hands) to extract the blown fuse carefully. Before you open or work on a fuse box, be sure that your vehicle's ignition is turned off. Carefully remove fuses; they can break easily and a broken fuse is a lot harder to get out than a fully intact one.

Step 3

Insert a replacement fuse of the correct amperage—make note of the fuse panel and your owner's manual on this one.This one
MAY NOT FIT your car!Please check the fuse size before ordering, especially if you have a newer car and/or a foreign made car.

Step 4

Start the ignition to check if your handiwork has paid off. If the same fuse blows soon after you replaced it or doesn't work at all, it might be time for a trip to the mechanic.
